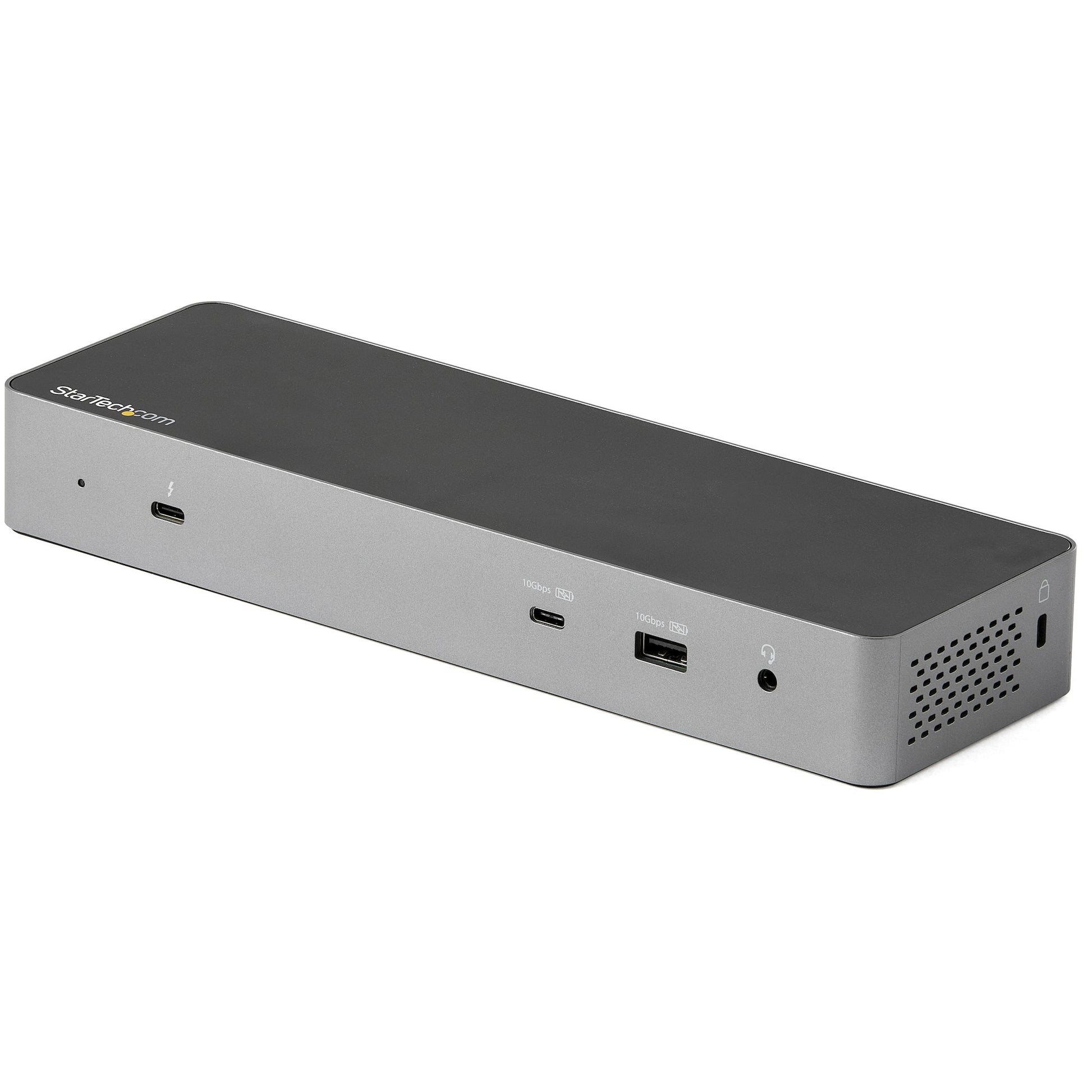

Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C® compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.
Flexible Dual Display Outputs This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways: DisplayPort + DisplayPort HDMI + HDMI DisplayPort + HDMI Resolutions and video outputs are host-dependent.
Thunderbolt 3 or 4 Laptop Single Monitor Dual Monitors Intel Laptops with 11th Gen or Later 8K 30Hz / 5K 60Hz / 4K 60Hz 4K 60Hz Intel Laptops with 10th Gen or Earlier 5K 60Hz / 4K 60Hz 4K 60Hz Apple M1 & M2 Pro/Max MacBooks 5K 60Hz / 4K 60Hz 4K 60Hz Apple M1 & M2 MacBooks 5K 60Hz / 4K 60Hz Mirrored Display Only Intel Based MacBook's with Thunderbolt 3 5K 60Hz / 4K 60Hz 4K 60Hz USB-C Laptop (No Thunderbolt) Single Monitor Dual Monitors Laptops with Intel 10th Gen or Later (Requires DP 1.4 Alt Mode) 4K 60Hz 4K 30Hz Laptops with DP 1.2 Alt Mode 4K 30Hz 1080p 60Hz More Downstream USB Ports Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports: Front Facing: • 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging • 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C.
1.2 Fast-Charging Back Facing: • 2x USB 3.2 Gen 1 Type-A (5 Gbps) • 1x USB 3.2 Gen 2 Type-C (10 Gbps) Easy to Set Up & Manage This universal Thunderbolt / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories.
The software suite includes: • Advanced Windows Layout Utility : To setup and save custom windows layouts.
• Mac Address Pass-Through Utility : To improve network security.
• USB Event Monitoring Utility : To track and log connected USB devices • Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools The StarTech.com Advantage.
